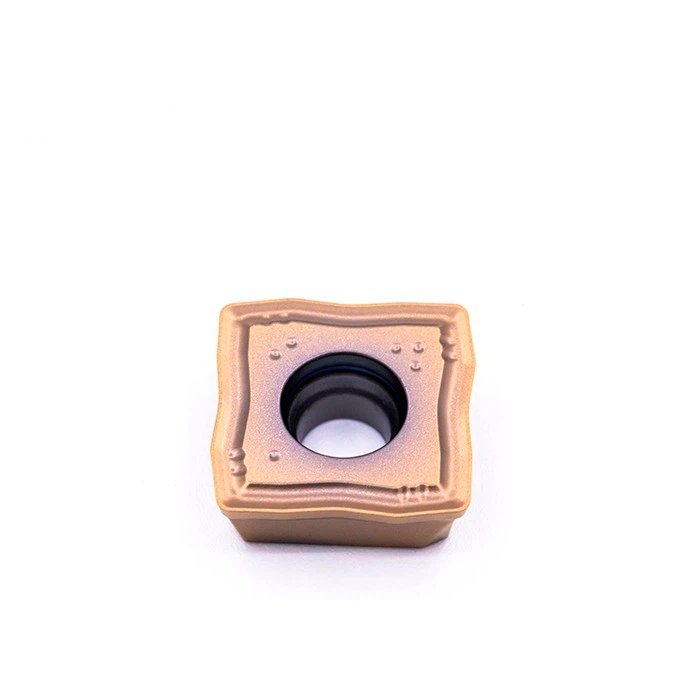

High Feed Milling Insert SOMT Carbide Insert

Product name: SOMT insert Series: SOMT Chip-Breakers: GM / GH

Products Details

High-feed milling is a machining method that pairs shallow depth of cut (DOC) with high feed rate up to 2.0 mm per tooth. This combination maximizes the amount of metal being removed from a part and increases the number of finished parts in a given time.High feed milling insert SOMT type with 4 edges is highly economical; A tough submicron substrate, improved TiAlN PVD coated grade for better chip flow. It has an extraordinary cutting feed rate. Excellent notch wear and built-up edge resistance.1.What are face mills? Face milling is a machining process in which the milling cutting is placed perpendicular to the work-piece. The milling cutting is essentially positioned “face down” towards the top of the work-piece. When engaged, the top of the milling cutting grinds away at the top of the work-piece to remove some of its material. 2.How do I choose the milling insert? Selecting the milling insert based on the application of demands and the space for the cutting tools. the larger of the insert.the better of the stability . For heavy machining, the insert size is normally above 1 inch. finishing, the size cans be reduced. 3.What is high speed machining? High-feed milling is a machining method that pairs shallow depth of cut with high feed rate. It can achieve a very high metal-removal rate, high-speed machining to reduce cycle time, increase tool life and productivity. 4.Do you offer samples? Yes, we do offer samples. However, buyers need to pay for the freight charge. In addition, whether samples are free or not depends on the quantity you buy. Hot Tags: cemented carbide inserts, China, suppliers, factory, buy, price, cheap, quotation, free sample

Type

Ap

(mm)

Fn

(mm/rev)

Grade

CVD

PVD

VK3020

VK3040

VK1025

VK1325

VK1525

VK1328

VR1010

VR1520

VR1525

VR1028

VR1330

SOMT100420ER-GM

0.10-

1.20

0.20-

2.00

O

O

SOMT140520ER-GH

0.50-

2.00

0.42-

2.00

O

O

• : Recommended Grade O: Optional Grade

Length

Size(mm)

IC

S

d

r

AN(°)

10

10.3

4.58

4.6

2

16

14

14.76

5.56

5.8

2

16

1Designed for machining heat resistant alloys, austenitic stainless steel, hard alloys and carbon steel at medium to high cutting speeds, interrupted cut and unfavorable conditions. Application for plane machining, step machining, grooving machining and cavity machining.
