General Turning Inserts CCMT Carbide Inserts

Product name: CCMT Inserts Series: CCMT Chip-Breakers: JW/MM

Products Details

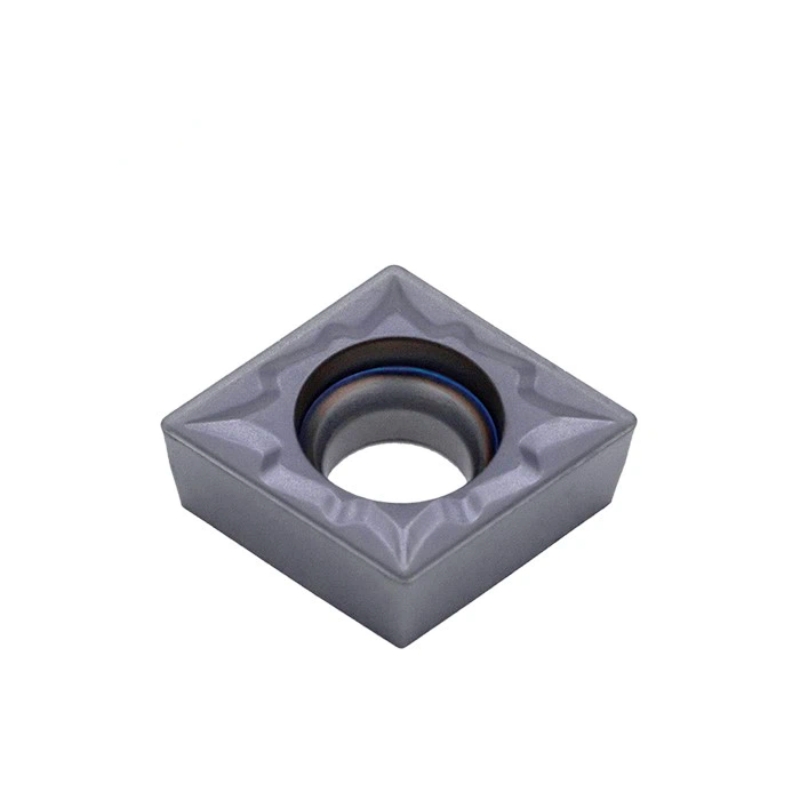

CCMT carbide insert is a 80°diamond with a 7° relief. The center hole is a 40°-60° single countersink, and a single-sided chip breaker. It has higher safety and reliability for end face machining under heavy duty interrupted cutting, vibration and unstable conditions, and is an ideal tool for machining work piece surfaces in harsh conditions. In addition, the CCMT has the advantages of high accuracy, wear resistance, corrosion resistance, long service life.

Application

Type

Ap

(mm)

Fn

(mm/rev)

Grade

CVD

PVD

VK4215

VK4315

VK4225

VK4325

VK4335

VK1025

VK1325

VK1525

VK1328

VR1525

VR1010

General

Semi Finishing

CCMT060204-

JW

0.40-2.10

0.05-

0.18

O

O

O

O

O

CCMT060208-

JW

0.80-2.10

0.10-

0.35

O

O

O

O

O

CCMT09T304-

JW

0.40-3.80

0.05-

0.18

O

O

O

O

O

CCMT09T308-

JW

0.80-3.20

0.10-

0.35

O

O

O

O

O

CCMT120404-

JW

0.40-4.30

0.05-

0.18

O

O

O

O

O

CCMT120408-

JW

0.80-4.30

0.10-

0.35

O

O

O

O

O

CCMT120412-

JW

1.20-4.30

0.15-

0.55

O

O

O

O

O

• : Recommended Grade O: Optional Grade

Application

Type

Ap

(mm)

Fn

(mm/rev)

Grade

CVD

PVD

VK4215

VK4315

VK4225

VK4325

VK4235

VK4335

VK1025

VK1325

VK1525

VK1328

VR1525

VR1010

M

Finishing

CCMT060204-MM

0.30-

1.60

0.05-

0.15

O

O

CCMT060208-MM

0.60-

1.60

0.10-

0.30

O

O

CCMT09T304-MM

0.30-

2.20

0.05-

0.15

O

O

CCMT09T308-MM

0.60-

2.40

0.10-

0.30

O

O

• : Recommended Grade O: Optional Grade

Length

Size(mm)

IC

S

d

r

6

3.65

2.38

2.8

0.4-0.8

9

9.525

3.97

4.4

0.4-0.8

12

12.7

4.76

5.56

0.4-1.2

11.What is the difference between positive and negative inserts? The difference between Positive and Negative insert lies in they with different clearance angle. The clearance angle of negative insert is o degree . the positive inserts have clearance angle between 1 degree to 90 degree. 2.Which insert type is the best choice for rough machining? When you need roughing and general turning .the negative inserts are the first and best option. this type of insert allows deeper depths of cut and higher feed rates due to strong insert shapes and thickness. 3.What is the delivery time of your products? It depends on the inventory availability. If the items are in stock, the processing time would be within 24 hours; but if not, the Processing time would be around 20-30 working days. 4.Do you offer samples? Yes, we do offer samples. However, buyers need to pay for the freight charge. In addition, whether samples are free or not depends on the quantity you buy. Hot Tags: metal cutting inserts, China, suppliers, factory, buy, price, cheap, quotation, free sampleThe CCMT is widely applied in cutting and grooving, thread turning, etc. It’s an good ideal choice for roughing.semi-finishing.finishing.general machining of steel. stainless steel and cast iron.
