General Turning Inserts TCMT Carbide Insert

Product name: TCMT Inserts Series: TCMT Chip-Breakers: GM/GF

Products Details

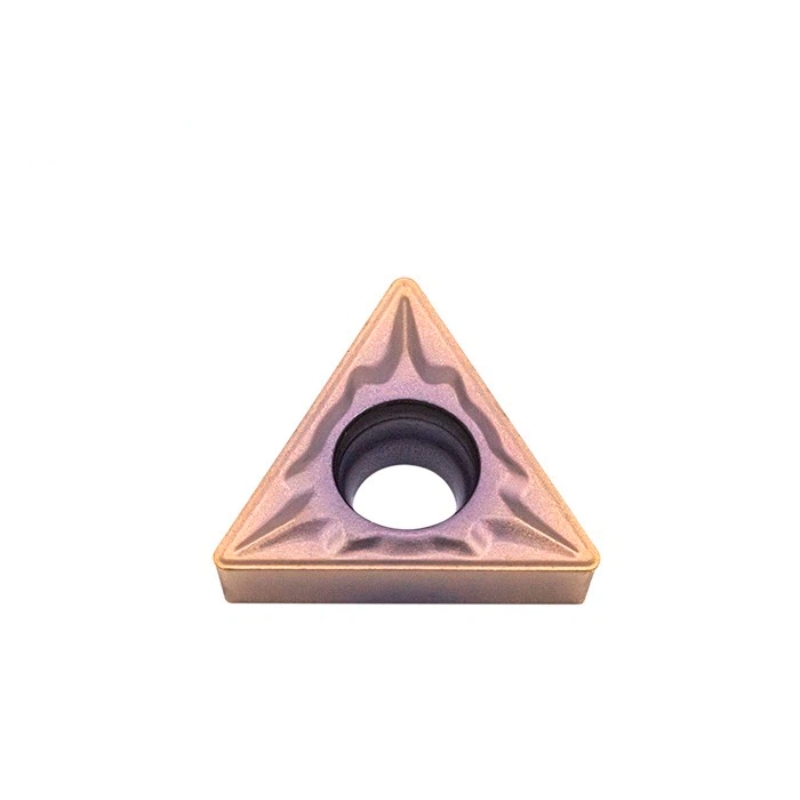

TCMT carbide insert is a 60°triangle with a 7°relief. The center hole is a 40°-60° single countersink, and there is a single-sided chip breaker. It has an inscribed circle (IC) of 0.25" (1/4"), a thickness of 0.094" (3/32"), and a corner (nose) radius of 0.0156" (1/64").

Type

Ap

(mm)

Fn

(mm/rev)

Grade

CVD

PVD

VK4215

VK4315

VK4225

VK4325

VK4335

VK1025

VK1525

VK1825

VK1828

VR1010

VR1525

TCMT090204-GM

0.40-2.90

0.05-

0.20

O

O

O

O

O

TCMT090208-GM

0.80-2.90

0.10-

0.35

O

O

O

O

O

TCMT110204-GM

0.40-3.30

0.05-

0.20

O

O

O

O

O

TCMT110208-GM

0.80-3.30

0.10-

0.35

O

O

O

O

O

TCMT110212-GM

1.20-3.30

0.15-

0.55

O

O

O

O

O

TCMT16T304-GM

0.40-4.90

0.05-

0.20

O

O

O

O

O

TCMT16T308-GM

0.80-4.90

0.10-

0.35

O

O

O

O

O

TCMT16T312-GM

1.20-4.90

0.15-

0.55

O

O

O

O

O

• : Recommended Grade O: Optional Grade

Type

Ap

(mm)

Fn

(mm/rev)

Grade

CVD

PVD

VK4215

VK4315

VK4225

VK4325

VK1025

VK1525

VK1824

VK1825

VK1828

VR1010

VR1520

VR1525

VR1028

TCMT090204-GF

0.30-1.80

0.05-

0.15

O

O

O

TCMT090208-GF

0.60-2.20

0.10-

0.30

O

O

O

TCMT110204-GF

0.30-2.20

0.05-

0.15

O

O

O

TCMT110208-GF

0.60-3.30

0.10-

0.30

O

O

O

TCMT110212-GF

1.20-3.30

0.20-

0.40

O

O

O

TCMT16T304-GF

0.30-3.30

0.05-

0.15

O

O

O

TCMT16T308-GF

0.60-3.30

0.10-

0.30

O

O

O

TCMT16T312-GF

1.20-3.30

0.10-

0.40

O

O

O

• : Recommended Grade O: Optional GradeTCMT Triangle Insert with Hole. Screw-On Insert. 7 degree relief angle. Single Sided Insert with GM/GF- Medium Chip breaker for semi-finishing and finishing in a variety of materials and applications.

Length

Size(mm)

IC

S

d

r

9

5.56

2.38

2.2

0.4-0.8

11

6.35

2.38

2.8

0.4-1.2

16

9.525

3.97

4.4

0.4-1.2
