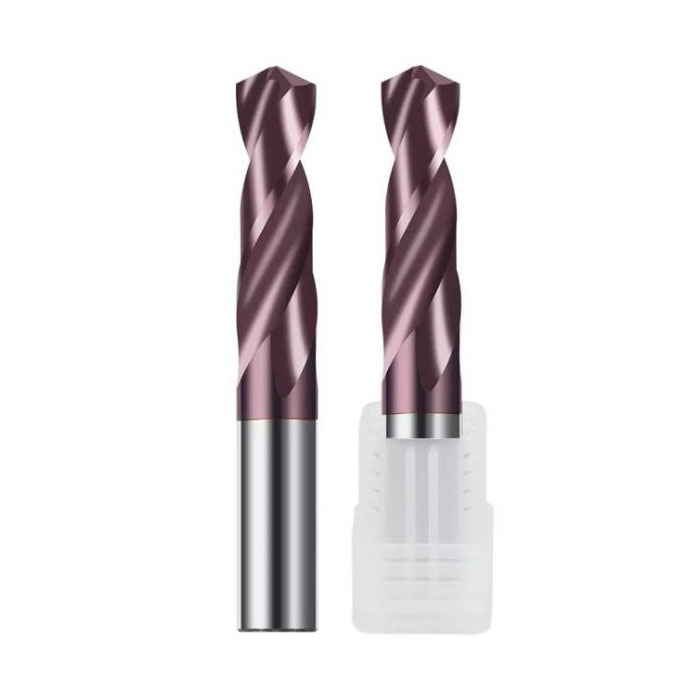

Carbide Drilling Tools for Metal and Wood working

100% virgin brand new tungsten steel material

Products Details

1.100% virgin brand new tungsten steel material 2.0.2-0.7μm Micro grain 3.High hardness, high wear-resistance 4.High temperature resistance and toughness 5.Thick blade to make sure strength and anti-seismicity effect 6.Variable helix angle flutes provides vibration dampening milling 7.Precision ground flutes and advanced edge preparation provide maximum chip evacuation 8.Optional for AITin, TiAIn, Tin, TiCn, etc 9.Right coating make sure long life, high surface hardness, wear resistance and lubricous surface 10.Precise chamfer contour round and smooth with international stand size 11.Laser mark on shank 12.We have all kinds of drilling tools, such as twist drill, straight groove drill, reamer drill, center drill, fixed point drill and so on.1.Carbide 3D&5D Drills wood (1) 2.Fixed Shank Drills wood (2) 3.Micro Dia Drills wood (3) 4.Internal Cooling Drills wood (4) 5.Spot Drills wood (5) 6.Straight Groove Drill wood (6) 7.Spiral Reamer wood (7) 8.Straight Flute Reamer wood (8) 9 Step Reamer wood (9)3. Carbide Drills 2. 3xD 5xD Carbide Drills 5. Spot Drills4. Carbide Drills 9. Carbide Reamers5. Spot Drills 6. Spot Drills 7. Chamfer End Mills 8. Chamfer End Mills Application:Suitable for drilling Steel (≤HRC48),Cast Iron.Unique cutting edge preparation to add strength to the cutting edge,and improve the drilling stability.Straight cutting edge,improves tool strength. Coating:AlTiN

Code No.

Cutting Dia D

Shank Dia

d

Cutting L

Lc

Shank  L

L4

T L

23BT4-030062

3

6

20

36

62

23BT4-035062

3.5

6

20

36

62

23BT4-040066

4

6

24

36

66

23BT4-045066

4.5

6

24

36

66

23BT4-050066

5

6

28

36

66

23BT4-055066

5.5

6

28

36

66

23BT4-060066

6

6

28

36

66

23BT4-065079

6.5

8

34

36

79

23BT4-070079

7

8

34

36

79

23BT4-075079

7.5

8

41

36

79

23BT4-080079

8

8

41

36

79

23BT4-085089

8.5

10

47

40

89

23BT4-090089

9

10

47

40

89

23BT4-095089

9.5

10

47

40

89

23BT4-100089

10

10

47

40

89

23BT4-105102

10.5

12

55

45

102

23BT4-110102

11

12

55

45

102

23BT4-115102

11.5

12

55

45

102

23BT4-120102

12

12

55

45

102

23BT4-125107

12.5

14

60

45

107

23BT4-130107

13

14

60

45

107

23BT4-135107

13.5

14

60

45

107

23BT4-140107

14

14

60

45

107

23BT4-145115

14.5

16

65

48

115

23BT4-150115

15

16

65

48

115

23BT4-155115

15.5

16

65

48

115

23BT4-160115

16

16

65

48

115

23BT4-165123

16.5

18

73

48

123

23BT4-170123

17

18

73

48

123

23BT4-175123

17.5

18

73

48

123

23BT4-180123

18

18

73

48

123

23BT4-185131

18.5

20

79

50

131

23BT4-190131

19

20

79

50

131

23BT4-195131

19.5

20

79

50

131

23BT4-200131

20

20

79

50

131

Application:Suitable for drilling Steel (≤HRC48),Cast Iron.Unique cutting edge preparation to add strength to the cutting edge,and improve the drilling stability.Straight cutting edge,improves tool strength. Coating:AlTiN

Code No.

Cutting Dia D

Shank Dia

d

Cutting L

Lc

Shank  L

L4

T L

24BT4-050066

5

6

28

36

66

24BT4-055066

5.5

6

28

36

66

24BT4-060066

6

6

28

36

66

24BT4-065079

6.5

8

34

36

79

24BT4-070079

7

8

34

36

79

24BT4-075079

7.5

8

41

36

79

24BT4-080079

8

8

41

36

79

24BT4-085089

8.5

10

47

40

89

24BT4-090089

9

10

47

40

89

24BT4-095089

9.5

10

47

40

89

24BT4-100089

10

10

47

40

89

24BT4-105102

10.5

12

55

45

102

24BT4-110102

11

12

55

45

102

24BT4-115102

11.5

12

55

45

102

24BT4-120102

12

12

55

45

102

24BT4-125107

12.5

14

60

45

107

24BT4-130107

13

14

60

45

107

24BT4-135107

13.5

14

60

45

107

24BT4-140107

14

14

60

45

107

24BT4-145115

14.5

16

65

48

115

24BT4-150115

15

16

65

48

115

24BT4-155115

15.5

16

65

48

115

24BT4-160115

16

16

65

48

115

24BT4-165123

16.5

18

73

48

123

24BT4-170123

17

18

73

48

123

24BT4-175123

17.5

18

73

48

123

24BT4-180123

18

18

73

48

123

24BT4-185131

18.5

20

79

50

131

24BT4-190131

19

20

79

50

131

24BT4-195131

19.5

20

79

50

131

24BT4-200131

20

20

79

50

131

1. Are you manufacturer or trading company? We are professional manufacturer with more than 19 years experience in this field of carbide tools. 2.When can I get the price? We usually quote within 24 hours after receiving your inquiry. If you need a quote urgently, please let us know in your email so we can prioritize your inquiry. 3. How to place an order? 1.Fill your Order List in our online Inquiry System. 2.Directly contact our salesperson by E-mail / Skype / Whats App We will make a feedback to you ASAP after receive your order list. 4. What is your payment terms? T/T, Western Union, Alibaba assurance for different circumstances. 5. What's your delivery way? Express delivery, DHL, TNT, FEDEX , EMS, air shipping, sea shipping are available for your request. 6. Do you offer OEM? Yes, we do. We have laser machine lasering your logo and tool specification on the body of tools. Also, we can print customized on plastic boxes. 7. How about the delivery time? Usually delivery time is 2~3 days after receiving the advance payment. For the customized product, 7-10 days after receiving the advance payment. 8.Can you send the product to our forwarder in China? Yes, if you have a forwarder in China, we are happy to send the product to him/her. 9.What is the MOQ? We have fixed MOQ for each of our products. But if you need less, it's okay, as we will change the price according to your quantity.Application:Suitable for drilling Steel (≤HRC48),Cast Iron.Unique cutting edge preparation to add strength to the cutting edge,and improve the drilling stability.Straight cutting edge,improves tool strength. Coating:AlTiN

Code No.

Cutting Dia D

Shank Dia

d

Cutting L

Lc

Shank  L

L4

T L

25BT4-030066

3

6

 28

36

66

25BT4-035066

3.5

6

28

36

66

25BT4-040074

4

6

36

36

74

25BT4-045074

4.5

6

36

36

74

25BT4-050082

5

6

44

36

82

25BT4-055082

5.5

6

44

36

82

25BT4-060082

6

6

44

36

82

25BT4-065091

6.5

8

53

36

91

25BT4-070091

7

8

53

36

91

25BT4-075091

7.5

8

53

36

91

25BT4-080091

8

8

53

36

91

25BT4-085103

8.5

10

61

40

103

25BT4-090103

9

10

61

40

103

25BT4-095103

9.5

10

61

40

103

25BT4-100103

10

10

61

40

103

25BT4-105118

10.5

12

71

45

118

25BT4-110118

11

12

71

45

118

25BT4-115118

11.5

12

71

45

118

25BT4-120124

12

12

71

45

124

25BT4-125124

12.5

14

77

45

124

25BT4-130124

13

14

77

45

124

25BT4-135124

13.5

14

77

45

124

25BT4-140124

14

14

77

45

124

25BT4-145133

14.5

16

83

48

133

25BT4-150133

15

16

83

48

133

25BT4-155133

15.5

16

83

48

133

25BT4-160133

16

16

83

48

133

25BT4-165143

16.5

18

93

48

143

25BT4-170143

17

18

93

48

143

25BT4-175143

17.5

18

93

48

143

25BT4-180143

18

18

93

48

143

25BT4-185153

18.5

20

101

50

153

25BT4-190153

19

20

101

50

153

25BT4-195153

19.5

20

101

50

153

25BT4-200153

20

20

101

50

153

Application:Suitable for drilling Steel (≤HRC48),Cast Iron.Unique cutting edge preparation to add strength to the cutting edge,and improve the drilling stability.Straight cutting edge,improves tool strength. Coating:AlTiN

Code No.

Cutting Dia D

Shank Dia

d

Cutting L

Lc

Shank  L

L4

T L

26BT4-050082

5

6

44

36

82

26BT4-055082

5.5

6

44

36

82

26BT4-060082

6

6

44

36

82

26BT4-060591

6.5

8

53

36

91

26BT4-070091

7

8

53

36

91

26BT4-075091

7.5

8

53

36

91

26BT4-080091

8

8

53

36

91

26BT4-085103

8.5

10

61

40

103

26BT4-090103

9

10

61

40

103

26BT4-095103

9.5

10

61

40

103

26BT4-100103

10

10

61

40

103

26BT4-105118

10.5

12

71

45

118

26BT4-110118

11

12

71

45

118

26BT4-115118

11.5

12

71

45

118

26BT4-120124

12

12

71

45

124

26BT4-125124

12.5

14

77

45

124

26BT4-130124

13

14

77

45

124

26BT4-135124

13.5

14

77

45

124

26BT4-140124

14

14

77

45

124

26BT4-145133

14.5

16

83

48

133

26BT4-150133

15

16

83

48

133

26BT4-155133

15.5

16

83

48

133

26BT4-160133

16

16

83

48

133

26BT4-165143

16.5

18

93

48

143

26BT4-170143

17

18

93

48

143

26BT4-175143

17.5

18

93

48

143

26BT4-180143

18

18

93

48

143

26BT4-185153

18.5

20

101

50

153

26BT4-190153

19

20

101

50

153

26BT4-195153

19.5

20

101

50

153

26BT4-200153

20

20

101

50

153

Application:Suitable for drilling stainless steel.Excellent edge strength and excellent self-center capability.Straight lips,precise edge preparation is adapted,reinforce the strength of edge. Coating:TiSIN

Code No.

Cutting Dia D

Shank Dia

d

Cutting L

Lc

Shank  L

L4

T L

27BT4-030062

3

6

20

36

62

27BT4-035062

3.5

6

20

36

62

27BT4-040066

4

6

24

36

66

27BT4-045066

4.5

6

24

36

66

27BT4-050066

5

6

28

36

66

27BT4-055066

5.5

6

28

36

66

27BT4-060066

6

6

28

36

66

27BT4-065079

6.5

8

34

36

79

27BT4-070079

7

8

34

36

79

27BT4-075079

7.5

8

41

36

79

27BT4-080079

8

8

41

36

79

27BT4-085089

8.5

10

47

40

89

27BT4-090089

9

10

47

40

89

27BT4-095089

9.5

10

47

40

89

27BT4-100089

10

10

47

40

89

27BT4-105102

10.5

12

55

45

102

27BT4-110102

11

12

55

45

102

27BT4-115102

11.5

12

55

45

102

27BT4-120102

12

12

55

45

102

27BT4-125107

12.5

14

60

45

107

27BT4-130107

13

14

60

45

107

27BT4-135107

13.5

14

60

45

107

27BT4-140107

14

14

60

45

107

27BT4-145115

14.5

16

65

48

115

27BT4-150115

15

16

65

48

115

27BT4-155115

15.5

16

65

48

115

27BT4-160115

16

16

65

48

115

27BT4-165123

16.5

18

73

48

123

27BT4-170123

17

18

73

48

123

27BT4-175123

17.5

18

73

48

123

27BT4-180123

18

18

73

48

123

27BT4-185131

18.5

20

79

50

131

27BT4-190131

19

20

79

50

131

27BT4-195131

19.5

20

79

50

131

27BT4-200131

20

20

79

50

131

Application:Suitable for drilling stainless steel.Excellent edge strength and excellent self-center capability.Straight lips,precise edge preparation is adapted,reinforce the strength of edge. Coating:TiSIN

Code No.

Cutting Dia D

Shank Dia

d

Cutting L

Lc

Shank  L

L4

T L

28BT4-050066

5

6

28

36

66

28BT4-055066

5.5

6

28

36

66

28BT4-060066

6

6

28

36

66

28BT4-065079

6.5

8

34

36

79

28BT4-070079

7

8

34

36

79

28BT4-075079

7.5

8

41

36

79

28BT4-080079

8

8

41

36

79

28BT4-085089

8.5

10

47

40

89

28BT4-090089

9

10

47

40

89

28BT4-095089

9.5

10

47

40

89

28BT4-100089

10

10

47

40

89

28BT4-105102

10.5

12

55

45

102

28BT4-110102

11

12

55

45

102

28BT4-115102

11.5

12

55

45

102

28BT4-120102

12

12

55

45

102

28BT4-125107

12.5

14

60

45

107

28BT4-130107

13

14

60

45

107

28BT4-135107

13.5

14

60

45

107

28BT4-140107

14

14

60

45

107

28BT4-145115

14.5

16

65

48

115

28BT4-150115

15

16

65

48

115

28BT4-155115

15.5

16

65

48

115

28BT4-160115

16

16

65

48

115

28BT4-165123

16.5

18

73

48

123

28BT4-170123

17

18

73

48

123

28BT4-175123

17.5

18

73

48

123

28BT4-180123

18

18

73

48

123

28BT4-185131

18.5

20

79

50

131

28BT4-190131

19

20

79

50

131

28BT4-195131

19.5

20

79

50

131

28BT4-200131

20

20

79

50

131

Application:Suitable for drilling stainless steel.Excellent edge strength and excellent self-center capability.Straight lips,precise edge preparation is adapted,reinforce the strength of edge. Coating:TiSIN

Code No.

Cutting Dia D

Shank Dia

d

Cutting L

Lc

Shank  L

L4

T L

29BT4-030066

3

6

 28

36

66

29BT4-035066

3.5

6

28

36

66

29BT4-040074

4

6

36

36

74

29BT4-045074

4.5

6

36

36

74

29BT4-050082

5

6

44

36

82

29BT4-055082

5.5

6

44

36

82

29BT4-060082

6

6

44

36

82

29BT4-065091

6.5

8

53

36

91

29BT4-070091

7

8

53

36

91

29BT4-075091

7.5

8

53

36

91

29BT4-080091

8

8

53

36

91

29BT4-085103

8.5

10

61

40

103

29BT4-090103

9

10

61

40

103

29BT4-095103

9.5

10

61

40

103

29BT4-100103

10

10

61

40

103

29BT4-105118

10.5

12

71

45

118

29BT4-110118

11

12

71

45

118

29BT4-115118

11.5

12

71

45

118

29BT4-120124

12

12

71

45

124

29BT4-125124

12.5

14

77

45

124

29BT4-130124

13

14

77

45

124

29BT4-135124

13.5

14

77

45

124

29BT4-140124

14

14

77

45

124

29BT4-145133

14.5

16

83

48

133

29BT4-150133

15

16

83

48

133

29BT4-155133

15.5

16

83

48

133

29BT4-160133

16

16

83

48

133

29BT4-165143

16.5

18

93

48

143

29BT4-170143

17

18

93

48

143

29BT4-175143

17.5

18

93

48

143

29BT4-180143

18

18

93

48

143

29BT4-185153

18.5

20

101

50

153

29BT4-190153

19

20

101

50

153

29BT4-195153

19.5

20

101

50

153

29BT4-200153

20

20

101

50

153

Application:Suitable for drilling stainless steel.Excellent edge strength and excellent self-center capability.Straight lips,precise edge preparation is adapted,reinforce the strength of edge. Coating:TiSIN

Code No.

Cutting Dia D

Shank Dia

d

Cutting L

Lc

Shank  L

L4

T L

30BT4-050082

5

6

44

36

82

30BT4-055082

5.5

6

44

36

82

30BT4-060082

6

6

44

36

82

30BT4-060591

6.5

8

53

36

91

30BT4-070091

7

8

53

36

91

30BT4-075091

7.5

8

53

36

91

30BT4-080091

8

8

53

36

91

30BT4-085103

8.5

10

61

40

103

30BT4-090103

9

10

61

40

103

30BT4-095103

9.5

10

61

40

103

30BT4-100103

10

10

61

40

103

30BT4-105118

10.5

12

71

45

118

30BT4-110118

11

12

71

45

118

30BT4-115118

11.5

12

71

45

118

30BT4-120124

12

12

71

45

124

30BT4-125124

12.5

14

77

45

124

30BT4-130124

13

14

77

45

124

30BT4-135124

13.5

14

77

45

124

30BT4-140124

14

14

77

45

124

30BT4-145133

14.5

16

83

48

133

30BT4-150133

15

16

83

48

133

30BT4-155133

15.5

16

83

48

133

30BT4-160133

16

16

83

48

133

30BT4-165143

16.5

18

93

48

143

30BT4-170143

17

18

93

48

143

30BT4-175143

17.5

18

93

48

143

30BT4-180143

18

18

93

48

143

30BT4-185153

18.5

20

101

50

153

30BT4-190153

19

20

101

50

153

30BT4-195153

19.5

20

101

50

153

30BT4-200153

20

20

101

50

153

Application:Suitable for drilling the center hole and chamfer,suitable for drilling steel,cast iron,aluminum alloys,copper alloy. Coating:AITiN,TiSIN

Code No.

Cutting Dia D

Shank Dia

d

Cutting L

Lc

T L

31BT4-05062

5

5

10

62

31BT4-06066

6

6

15

66

31BT4-08079

8

8

17

79

31BT4-10089

10

10

20

89

31BT4-12102

12

12

25

102

31BT4-14107

14

14

31

107

31BT4-16115

16

16

35

115

31BT4-20131

20

20

40

131

Application:Suitable for high precision manual reaming of CFRP/GFRP and metal laminates,suitable for hole geometric accuracy and processing roughness demanding reaming.Double steps design can effectively increase the scope of application. Coating:TiSIN

Code No.

Cutting Dia D

Cutting L

Lc

T L

Flutes

Code No.

Cutting Dia D

Cutting L

Lc

T L

Flutes

32BT4-02050

2

25

50

4

32BT4-020100

2

50

100

4

32BT4-02550

2.5

25

50

4

32BT4-025100

2.5

50

100

4

32BT4-03050

3

25

50

4

32BT4-030100

3

60

100

4

32BT4-03550

3.5

25

50

4

32BT4-035100

3.5

60

100

4

32BT4-04050

4

25

50

4

32BT4-040100

4

60

100

4

32BT4-04550

4.5

25

50

4

32BT4-045100

4.5

60

100

4

32BT4-05050

5

25

50

4

32BT4-050100

5

60

100

4

32BT4-05550

5.5

25

50

4

32BT4-060100

6

60

100

6

32BT4-06060

6

30

60

6

32BT4-070100

7

60

100

6

32BT4-06570

6.5

35

70

6

32BT4-080100

8

60

100

6

32BT4-07070

7

35

70

6

32BT4-090100

9

60

100

6

32BT4-07570

7.5

35

70

6

32BT4-100100

10

60

100

6

32BT4-08070

8

35

70

6

32BT4-110100

11

60

100

6

32BT4-08575

8.5

40

75

6

32BT4-120100

12

60

100

6

32BT4-09075

9

40

75

6

32BT4-050150

5

100

150

4

32BT4-09575

9.5

40

75

6

32BT4-060150

6

100

150

6

32BT4-01075

10

40

75

6

32BT4-080150

8

100

150

6

32BT4-11075

11

40

75

6

32BT4-100150

10

100

150

6

32BT4-11575

11.5

40

75

6

32BT4-120150

12

100

150

6

32BT4-12075

12

40

75

6

32BT4-140150

14

100

150

6

Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
