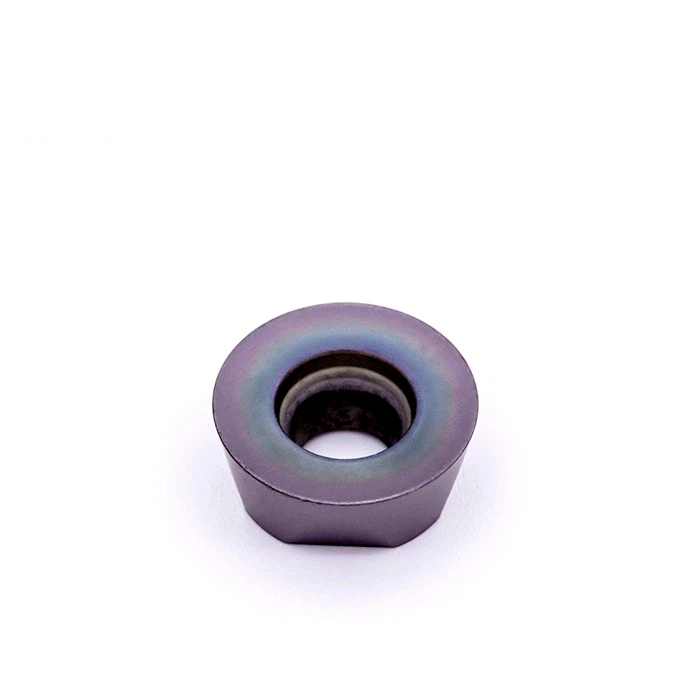

Factory Direct Profile Milling Insert RPMT Carbide Inserts

Profile milling is a common milling operation. RPMT insert is one kind of profile milling insert with strong cutting edges, best reliability and long endurance. R - Round shape of turning insert. P - Insert with clearance under main cutting edge (11°). M - Tolerances and dimensions of carbide turning insert. T - Hole through insert and single sided chip breaker.1.What is a milling insert? Milling inserts are used to machine tough some of the toughest materials.Such as steel, stainless steel, cast iron, non-ferrous materials. 2.How do I choose the milling insert? Selecting the milling insert based on the application of demands and the space for the cutting tools. the larger of the insert.the better of the stability . For heavy machining, the insert size is normally above 1 inch. finishing, the size cans be reduced. 3.What are coated carbides? Coated cemented carbide means the cemented carbide with a coating. It contains PVD and CVD coating. Coated carbide with high bond strength and extreme wear resistance.It’s the first choice for a wide variety of tools and applications. 4.Is non-standard products available? Yes, we accept OEM ODM orders 5.What is the delivery time of your products? It depends on the inventory availability. If the items are in stock, the processing time would be within 24 hours; but if not, the Processing time would be around 20-30 working days. Hot Tags: cemented carbide inserts, China, suppliers, factory, buy, price, cheap, quotation, free sample

Type

(mm)

(mm/rev)

Grade

CVD

PVD

VK3020

VK3040

VK1025

VK1325

VK1525

VK1328

VR1010

VR1520

VR1525

VR1028

VR1330

RPMT08T2MOE-JSM

1.00-1.30

0.05-

0.25

•

RPMT10T3MOE-JSM

1.50-4.00

0.05-

0.30

•

RPMT1204MOE-JSM

1.50-5.00

0.05-

0.35

•

RPMT1606MOE-JSM

2.00-6.50

0.10-

0.40

•

RPMT08T2MO-GM

1.50-4.00

0.10-

0.30

•

RPMT10T3MO-GM

1.80-5.00

0.10-

0.50

•

RPMT1204MO-GM

2.00-6.50

0.10-

0.50

•

RPMT08T2MO

1.5-

4.0

0.1-

0.3

•

RPMT10T3MO

1.8-

5.0

0.1-

0.5

•

RPMT1204MO

2-6.5

0.1-

0.5

•

• : Recommended Grade O: Optional Grade

Length	Size(mm)
Length	r	IC	S	APMX
8	4	8	2.78	4
10	5	10	3.18	5
12	6	12	4.76	6

Round inserts and concepts with radius are milling cutters used for roughing and semi-roughing while ball nose end mills are milling cutters used for finishing and super-finishing. Recommend for roughing, semi-roughing, semi-finishing and finishing of steel, stainless steel, cast iron and super alloys.
